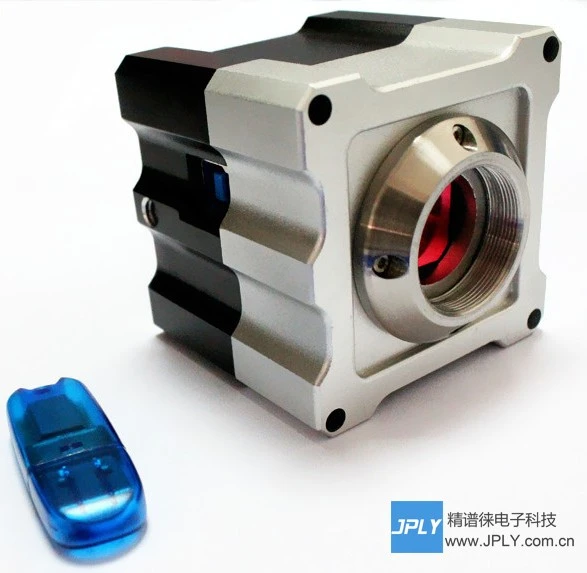

5 .0Megapixel USB3.0 microscope & machine vision camera
G1TD05C
General description:
USB 3.0 is not only possess the high usability and flexibility of USB 2.0 ,but also make a qualitative leap in data rate-480Mbps of USB 2.0 to 5Gbps. Considering this property, the JPLY engineers decided to adopt and developed this new technology in the field of industrial camera.
It's specially designed for professional clients who both use camera with 5Mega or above and have strict requirement in capturing rate at the same time.
specialfications:
Image sensor
1/2.5" CMOS BW
Pixel dimension
2.2um x 2.2um
Scan method
Progressive
Sensitivity
1.4V/Lux-sec(550nm)
Frame rate
14fps@ 2592 x 1944, 30fps@ 1920 x 1080,
36fps@ 1280 x 960,ROI
Shutter
Electronic shutter
SNR
44dB
Spectral response
400nm~1100nm
Data interface
USB3.0 rate 5Gbps,18M cable
Power
DC 5V
Current
About 500 mA
White balance
One-time white balance/regional white balance
Auto exposure control
36us~300ms,auto/manual,regional exposure
Lens Mount
C interface (Optional CS interface)
Busy indicator LED
Working humidity 0-85%
Camera weight About 115g
Software
Spectrumsee image analysis software with modular designing, including image previewing, capturing, analyzing, processing, sharing function.
The software function: image capturing, time lapse, measurement, data export etc.
features :
1080p fit for current HD LCD and HD TV;
10 times faster than US2.0;
5 Mega, 10Mega and 14Mega optional;
High quality color reproduction
Build in buffer make more fluent preview and lower system resources utilization
Support multi- cameras working.
When used in microscope, 0.35 times C mount is recommended, 0.35 times above C mount can also be used.
applications:
Machine vision and inspection
Industrial Inspection and measurment
Microscopy imaging and analysis
Educational demonstration
Lab automation
Medical research
Optical charactor recognize
sample is available if customer pay sample cost and freight ,will pay back one-way shipping fee if customer agrees to buy.
