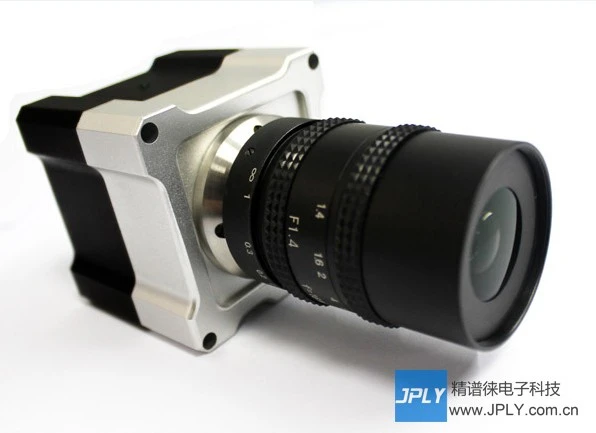

G1TD14C
14.0 Megapixel USB3.0 microscope camera
Model G1TD14C
Sensor MT9F002
Imager Sensor 1/2.3"CMOS Colour
Effective pixels 4348H*3288V（14M）
Resolution & Frame rate 4348*3288:12 fps
2592*1944（ROI）：32 fps
2048*1536（BIN）：28 fps
1920*1082（BIN）：38 fps
1920*1082（ROI）：71 fps
1024*768（ROI）：102 fps
800*600（SUM）：64 fps
Random size ROI
Pixel dimension 1.4μm*1.4μm
Scanning mode Progressive scan
Shutter Electronic rolling shutter
Exposure time 0.02~300ms
Image data format 8bit/10bit/12bit
Sensitivity 0.724V/LUX-sec（550nm）
Spectral response 400nm-650nm（with IR-filter）
SNR 35.5dB
Dynamic range 65.5dB
Exposure control Auto exposure/Manual exposure/Area exposure
White balance Manual white balance/Once key white balance/Area white balance
Programmable control Camera working speed,image dimension,shootmode,image lightness,exposure time,gain,anti-flick,GAMMA,contrast,RGB gain,saturation,black balance,sharpness
Support system Windows XP(32-bit); Win7(32/64-bit)
Support interface TWAIN，DirectShow
Data interface USB3.0 5Gbps
Product indicator LED constantly being on when power on and standing by and blink when working
Power consumption Work≤3.8W
Power supply USB5V（Without external power supply circuit）
Working temperature 0℃~45℃
Storage temperature -20℃~60℃
Working humidity 10%-90%RH（No condensation）
Storage humidity 10%-60%RH
Lens Mount C mount
